　　一、 产品名称

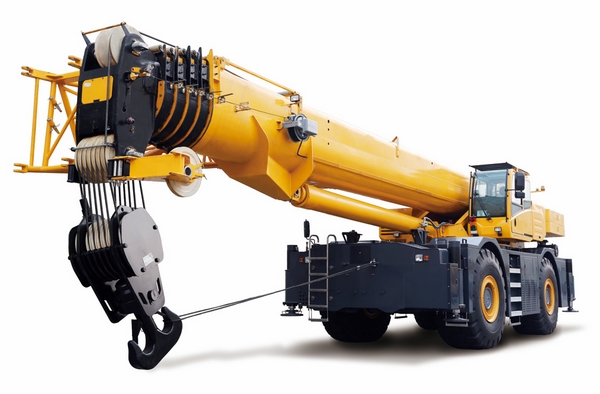

　　RT200E 越野轮胎起重机

　　RT200E Rough Terrain Crane

　　二、 产品简介

　　RT200E是徐工集团联合德国资深研发机构研制的全球最大吨位的越野轮胎起重机,该产品起重能力强、作业范围广、越野性能好、转场运输方便、使用成本低。

　　RT200E is the world’s largest Rough Terrain Crane, which is developed jointly by XCMG and a German experienced R & D institution. It has features of powerful lifting capacity, wide working range and better off-road performance, as well as easy transportation and lower operating cost.

　　三、 产品参数

　　项目 单位 参数

　　最大额定起重量 t 200

　　最长主臂长度 m 62

　　最高行驶速度 km/h 33

　　最大爬坡能力 % 60

　　发动机额定功率 kW/(r/min) 224/2100

　　Item Unit Parameters

　　Max. rated lifting capacity t 200

　　Max. boom length m 62

　　Max. travel speed km/h 33

　　Max. grade ability % 60

　　Engine rated power kW/(r/min) 224/2100

　　四、产品亮点 Highlights

　　1. 作业能力强

　　六节椭圆形起重臂,全长62米,是全球性能最高、作业范围最广的越野轮胎起重机。

　　两种驱动方式,四种转向模式,正反向行驶功能,最小转弯直径仅为17米,卓越的机动灵活性能。

　　超强动力系统,专用越野轮胎,适用于各种恶劣场地,通过性强。

　　Powerful operation capacity

　　6-section boom with oval profile may be extended fully to 62m, with features of highest performance and widest working range.

　　Two drive modes, four steering modes, forwards and backwards driving function, minimum turning diameter of 17m, incomparable manoeuvre ability.

　　Super-strong power system and specific off-road tires make the crane pass through various rough terrains easily.

　　2. 全方位安全措施

　　按照欧洲安全标准设计,作业安全性高。

　　行业独有的自动制动、车轮自动回正等专有技术,大幅提高行车安全性能。

　　冗余设计的电源管理系统,双重保护、安全可靠。

　　Various safety provisions

　　Designed according to European safety standards, high operation safety.

　　Unique automatic brake and automatic return of wheels technologies significantly improve driving safety.

　　Redundant design is adopted in power source management, double protection, safe and reliable.

　　3. 使用成本低

　　电子越权变功率控制的液压系统,低于行业平均油耗15%。

　　具有闭锁功能的液力变矩器,高速行驶油耗节省20%以上。

　　独特的自拆装式支腿,转场方便,运输成本低。

　　Lower operating cost

　　Electronic priority controlled hydraulic system with variable power, which decreases fuel consumption 15% compared with the competitive products.

　　Torque converter with lockout function, which saves 20% fuel in high speed traveling.

　　Unique self-disassembly outriggers make the transportation between job sits easy, and lower transportation cost.
